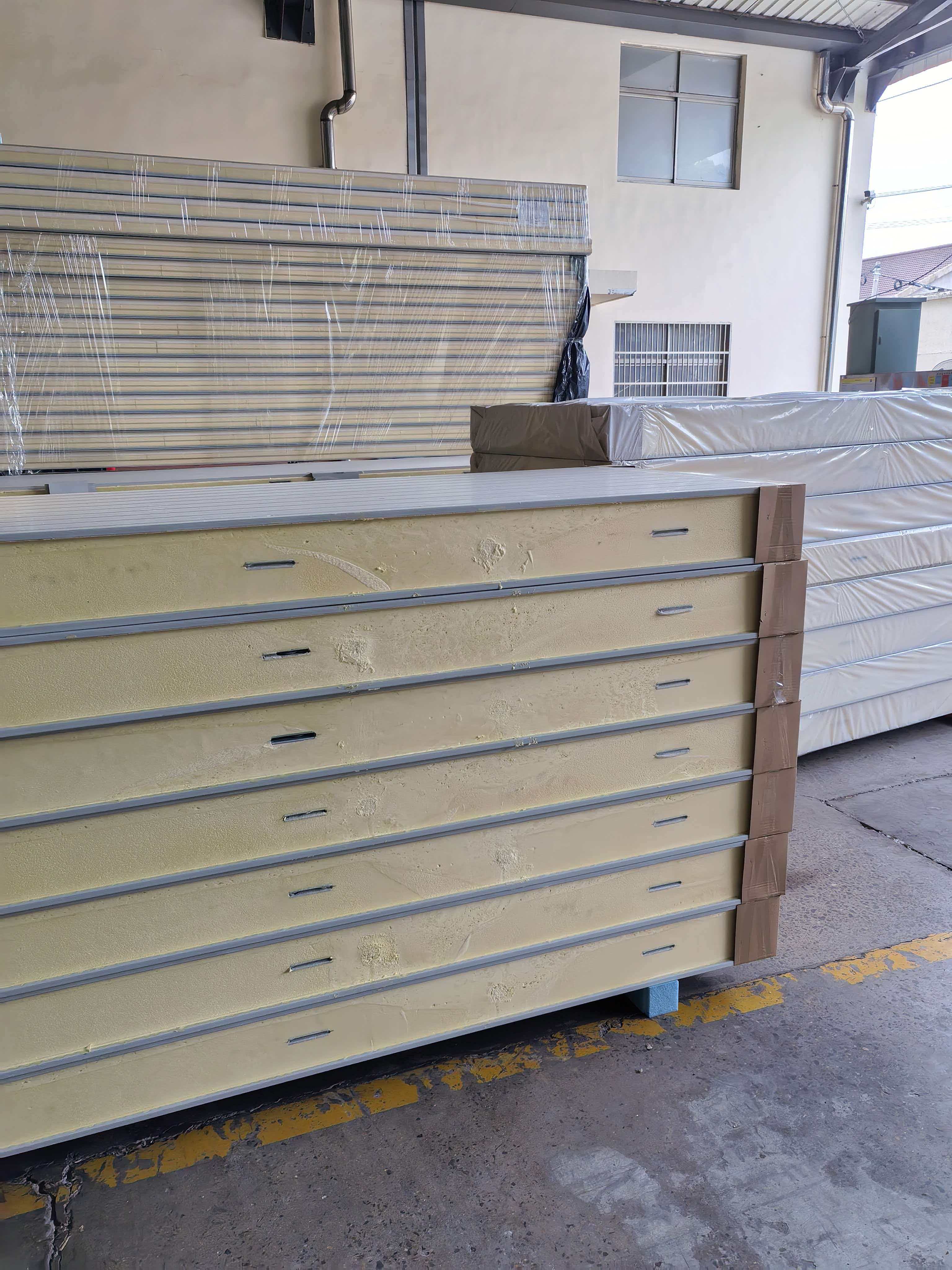

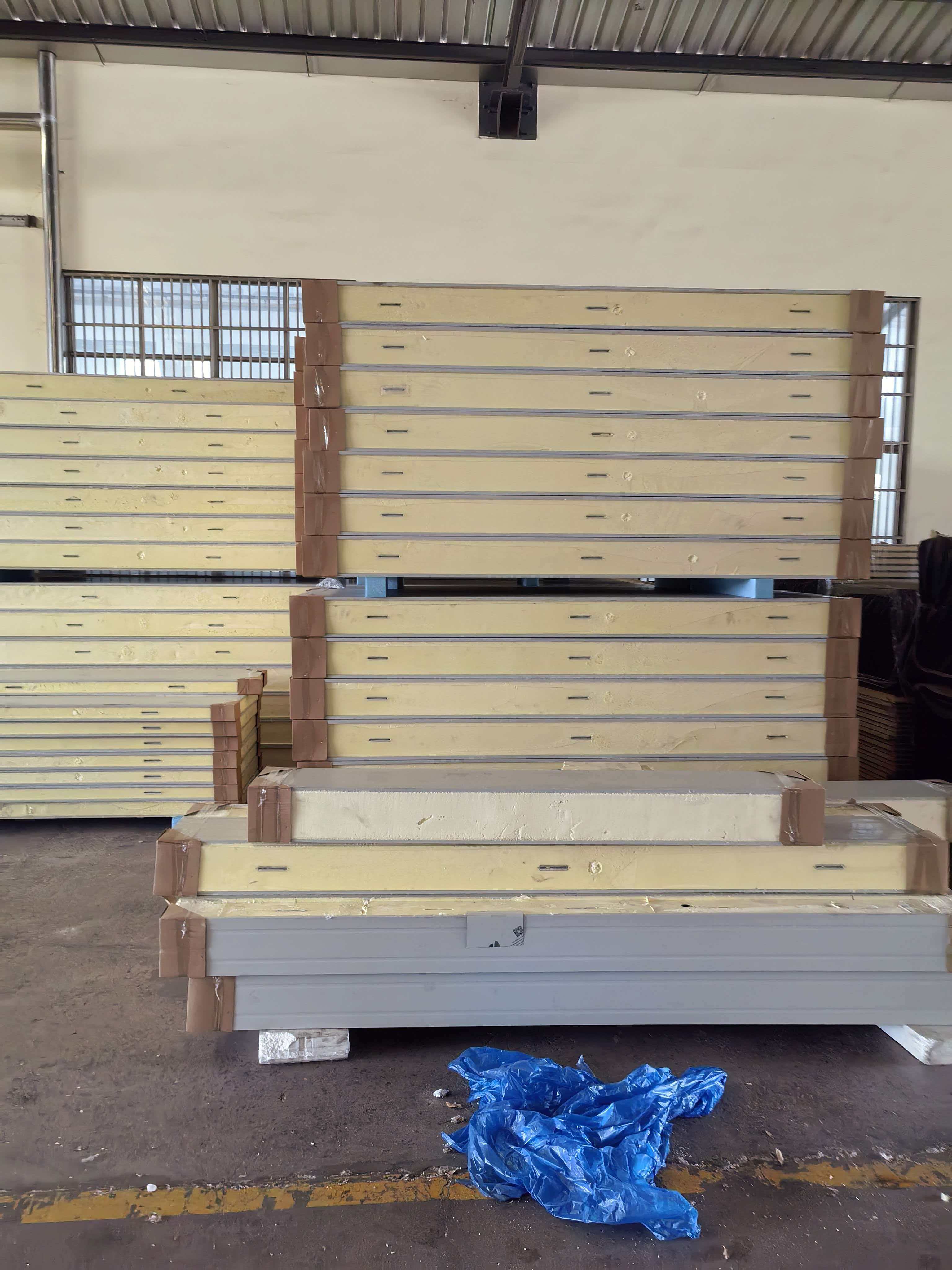

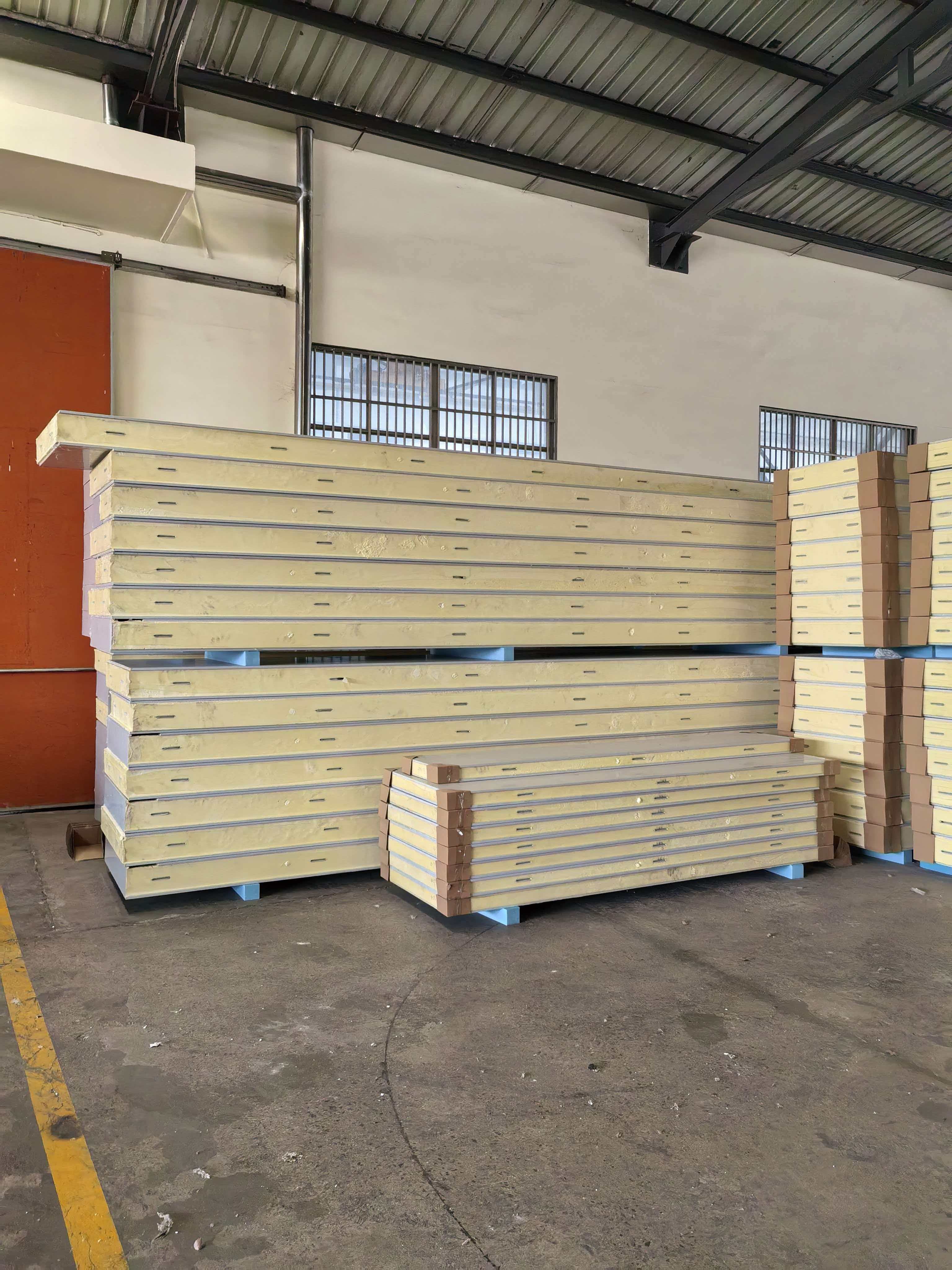

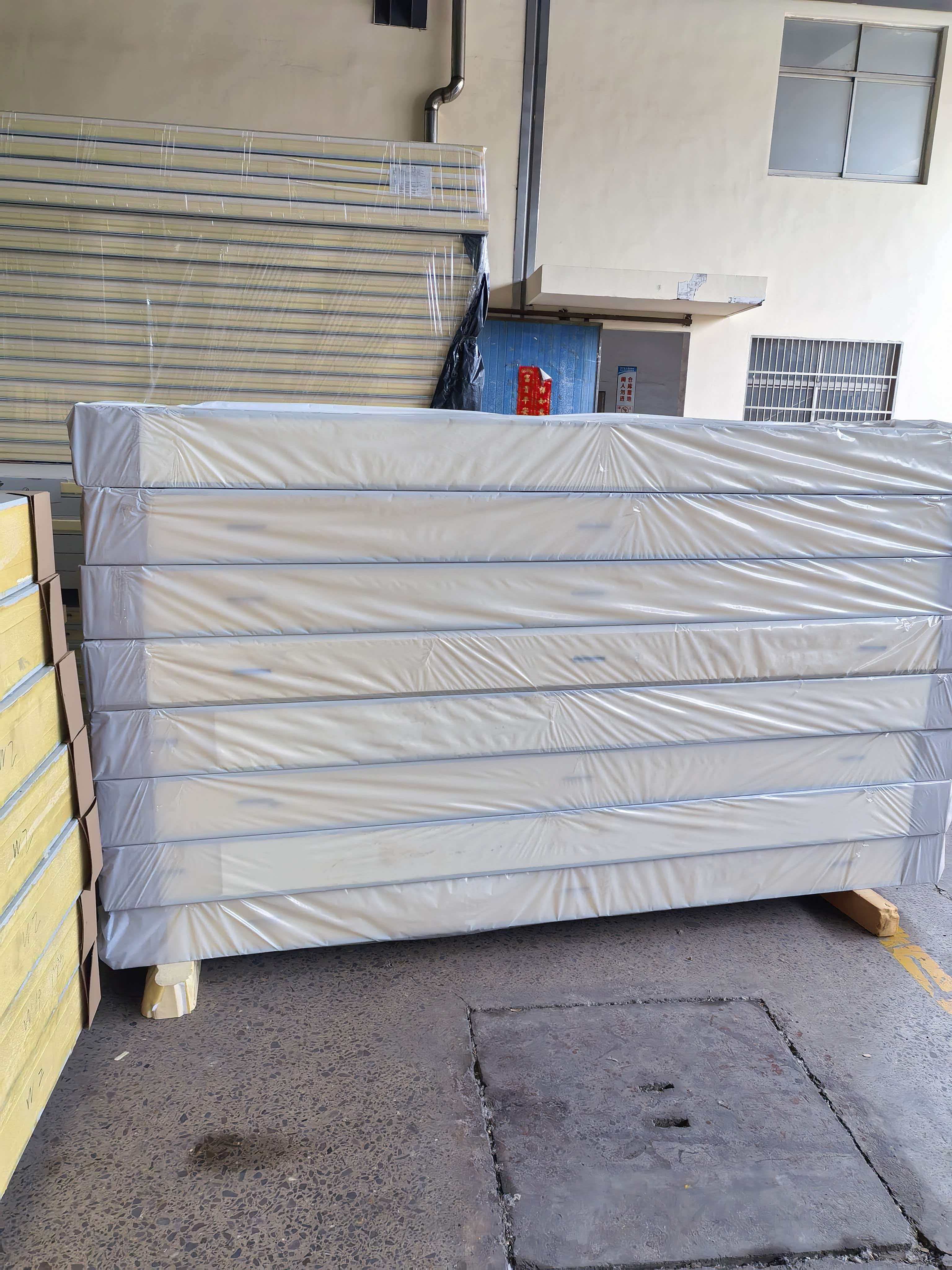

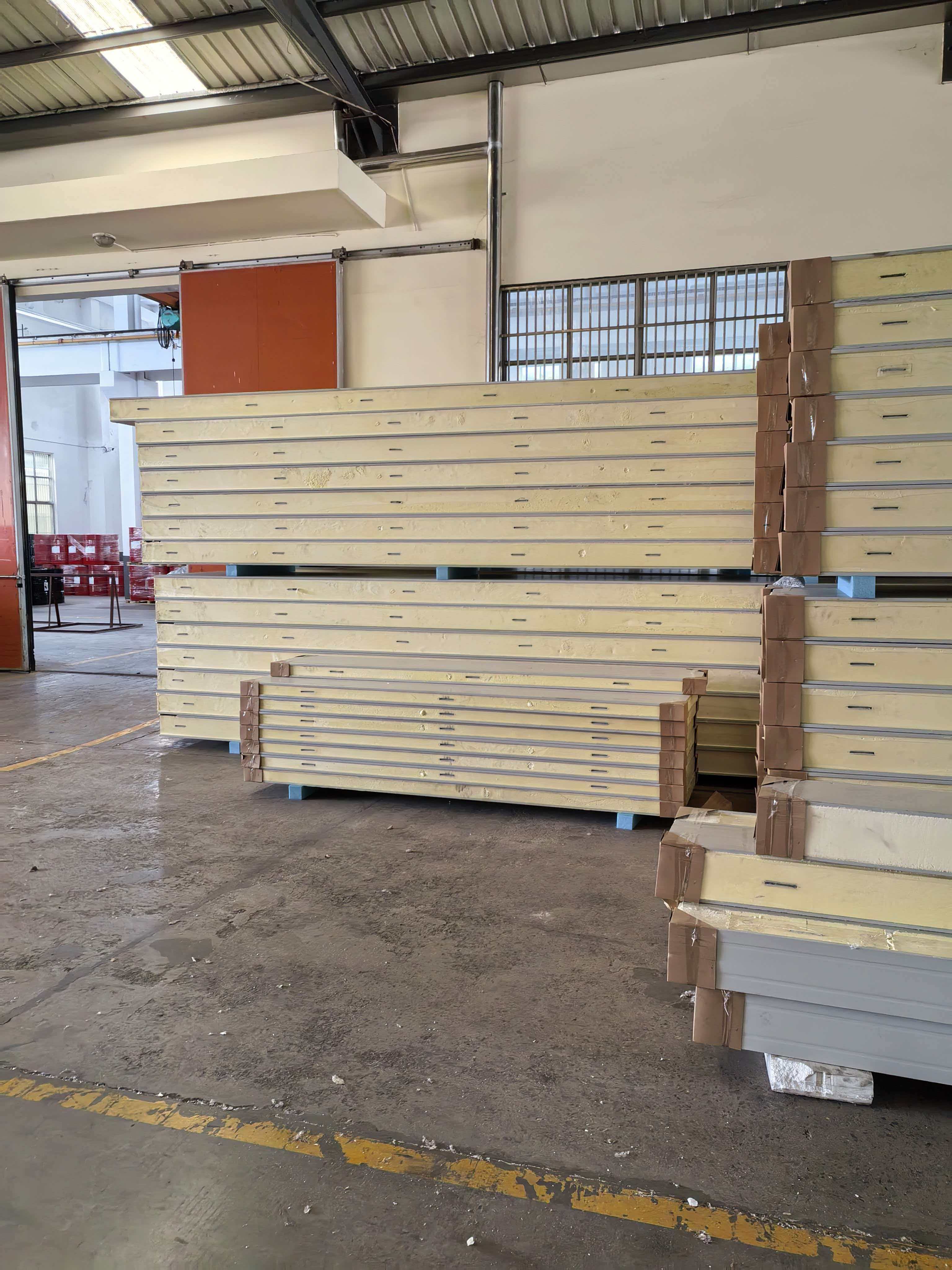

Cam Lock Type Cold Room Panels for Modular Cold Storage Rooms

Cam Lock Type Cold Room Panels are modular insulated panels designed for small and medium-sized cold storage rooms, walk-in coolers, walk-in freezers, and food storage facilities. Featuring a cam lock fastening system combined with tongue-and-groove joints, these panels allow fast installation, strong structural connection, and reliable thermal insulation performance.

Manufactured with high-density polyurethane (PU) foam insulation and durable metal facings such as PPGI, stainless steel, or embossed aluminum, cam lock cold room panels provide excellent energy efficiency, airtight sealing, and long-term durability for refrigeration and cold storage applications.

What Is a Cam Lock Cold Room Panel?

A Cam Lock Cold Room Panel is a prefabricated insulated panel system used to construct modular cold rooms. The panels are connected using a cam lock mechanism, which securely locks adjacent panels together through built-in pins and hooks.

This system allows users to assemble and disassemble cold rooms easily, making it ideal for prefabricated and flexible cold storage construction.

Definition of Cam Lock Panel System

Cam lock panels are insulated sandwich panels that use mechanical locking devices embedded within the panel edges. When rotated, the cam lock mechanism pulls adjacent panels tightly together, ensuring a secure and airtight connection.

How Cam Lock Mechanism Works

During installation, the cam lock key is inserted into the panel joint and rotated to engage the locking pin. This pulls the panels together, forming a tight seal between tongue-and-groove edges.

Why Cam Lock Panels Are Widely Used

Cam lock systems are widely used because they offer fast installation, easy disassembly, and high flexibility for small and medium cold storage projects.

Key Features of Cam Lock Cold Room Panels

Quick and Easy Installation

Cam lock panels significantly reduce installation time compared to traditional fixed-panel systems, making them ideal for fast-deployment cold rooms.

High-Density Polyurethane Insulation Core

The panels are filled with 38–42 kg/m³ PU foam, providing excellent thermal insulation and stable temperature control.

Airtight Sealing Performance

Precision-engineered joints and cam lock compression ensure strong airtight sealing, reducing energy loss and air leakage.

Cold Bridge-Free Panel Structure

The design prevents direct thermal bridging, improving insulation efficiency and reducing condensation risks.

Durable Metal Facing Materials

Available surface materials include:

• PPGI (pre-painted galvanized steel)

• SUS304 stainless steel

• Embossed aluminum sheets

These materials ensure corrosion resistance and long service life.

Strong Structural Stability

Cam lock panels provide sufficient rigidity for small and medium-sized cold storage rooms.

Modular and Flexible Design

Panels can be easily disassembled, relocated, or expanded according to project requirements.

Cam Lock Panel Connection System

Tongue-and-Groove Joint Structure

Each panel is manufactured with precision tongue-and-groove edges to ensure accurate alignment and sealing.

Cam Lock Pin and Hook Mechanism

Internal cam locks securely fasten adjacent panels together, ensuring strong mechanical bonding.

Tight Sealing Connection

The locking system compresses sealing joints, preventing air leakage and improving thermal efficiency.

Easy Disassembly and Reinstallation

The modular system allows panels to be reused or relocated without damage.

Benefits of Cam Lock Cold Room Panels

Faster Installation Time

Compared with fixed PU panels, cam lock systems significantly reduce construction time.

Energy Efficiency Improvement

High-quality insulation minimizes heat transfer and reduces refrigeration costs.

Flexible Cold Room Design

Suitable for customized layouts and modular expansion projects.

Lower Labor Cost

Simple installation reduces the need for specialized construction labor.

Excellent Airtight Performance

Strong sealing improves temperature stability and reduces cooling loss.

Ideal for Small and Medium Cold Rooms

Perfect for compact cold storage projects with limited installation space.

Applications of Cam Lock Cold Room Panels

Walk-In Coolers

Used for fresh food storage in restaurants, supermarkets, and retail stores.

Walk-In Freezers

Suitable for frozen food storage and small-scale freezer rooms.

Small Cold Storage Warehouses

Ideal for compact storage facilities and distribution centers.

Food Processing Workshops

Used in meat, seafood, dairy, and prepared food production environments.

Pharmaceutical Storage Rooms

Provides stable temperature control for medicines and healthcare products.

Commercial Kitchens

Commonly used in hotels, restaurants, and catering facilities.

Logistics and Distribution Centers

Supports small-scale cold chain storage and temporary cold rooms.

Technical Specifications

Panel Type

Cam Lock Type Insulated Sandwich Panel

Panel Width Options

960 mm / 1160 mm

Panel Thickness Options

50 mm / 75 mm / 100 mm / 120 mm / 150 mm / 200 mm

Core Material

High-Density Polyurethane (PU)

PU Density

38–42 kg/m³

Surface Material Options

• PPGI (Pre-painted Galvanized Steel)

• SUS304 Stainless Steel

• Paper Coated Steel

Temperature Range

-45°C to +50°C

Connection System

Cam Lock + Tongue-and-Groove Joint

Why Choose Our Cam Lock Cold Room Panels?

Reliable Manufacturing Quality

Produced using advanced PU foaming technology and precision metal processing.

High Thermal Performance

Ensures stable temperature control and energy savings.

Easy Modular Construction

Designed for fast installation and flexible cold room layout design.

Cost-Effective Solution

Ideal for small and medium cold storage projects with budget efficiency.

Customizable Options

Panel thickness, surface material, and dimensions can be customized.

Global Application Experience

Widely used in food storage, logistics, and commercial refrigeration projects worldwide.

Installation Guide

Step 1: Panel Positioning

Place panels according to cold room design layout.

Step 2: Cam Lock Alignment

Align tongue-and-groove edges between panels.

Step 3: Locking Process

Insert cam key and rotate to lock panels tightly.

Step 4: Sealing Inspection

Ensure all joints are properly sealed to prevent air leakage.

Step 5: Final Structure Check

Verify stability and alignment of the entire cold room structure.

Maintenance Guidelines

Regular Inspection

Check sealing joints and locking mechanisms periodically.

Cleaning Surface Panels

Use non-corrosive cleaning agents for hygiene maintenance.

Check Thermal Seals

Ensure sealing strips remain intact to maintain insulation performance.

Frequently Asked Questions

What is a Cam Lock Cold Room Panel?

It is a modular insulated panel system connected using cam lock fasteners for quick installation.

Are Cam Lock Panels suitable for freezer rooms?

Yes, they are suitable for both cold rooms and freezer environments down to -45°C.

Can the panels be reused?

Yes, cam lock systems allow disassembly and relocation.

What materials are used?

PU insulation core with PPGI, stainless steel, or aluminum surface options.

Are custom sizes available?

Yes, panel thickness and dimensions can be customized.

Request a Quote for Cam Lock Cold Room Panels

We provide high-quality cam lock cold room panels for walk-in coolers, freezer rooms, food storage facilities, and small to medium cold storage projects.

Contact us for technical specifications, pricing, and customized solutions. Our engineering team is ready to support your cold storage project with reliable insulated panel systems.
